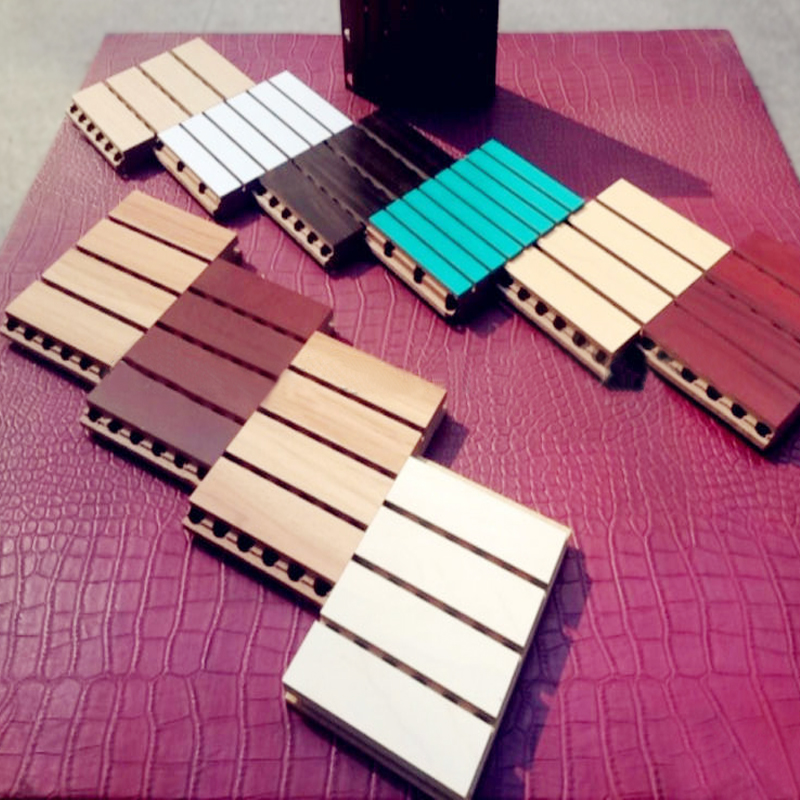

Sound Absorbing Board Wooden Grooved Acoustic Panel
Specification:
Wooden grooved acoustic panels, timber veneered or colored painted, sound absorb er classes A to E, as well as sound reflecting panels. Wooden grooved acoustic panels are based on MDF in fire rating classes B1 and B2 or vermiculite base panels in fire rating class A1 to DIN 4102. Perforated acoustic panels based on MDF can be used for ball impact resistant wall linings to DIN 18032-3.
6 different types of face grooving available, providing a wide range of sound absorption properties. Where good acoustics are essential, e.g. in concert halls, the installation of our highly sound absorbing wooden grooved timber acoustic panels, leads to a special sound experience.
Panel details:
1.All pricing is based on net coverage and includes standard packaging.
2.Minimum quantities may be required for certain panel dimensions and/or colors. Please Inquire.
3.All pricing is based on med. brown (carbonized) color, Please see colour chart for available standard colors. Special colors are available, please inquire.
4.Certain series panels are available in a vertical and horizontal grains only. See lamination lay-up chart for details.
5.Custom thickness, widths, lengths are available, please inquire.
Dimensions:
Plate length: 2440mm.
Plate modulation: 133mm,197mm
Thickness ( back space excluded): 12 mm,15 mm,18 mm, suitable for walls and ceilings.
Support materials and finishes:
The support material is always MDF fiberboard wood panels, in standard and fireproof versions. Surface finishes can be raw, melamine, plywood, varnished or lacquered. Other options available on request.
Plus panels have always a built-in veil on its back, in order to improve its sound absorbing qualities.
Mounting system:
Suitable for walls and ceilings, the mounting system is tongue and groove. The linear joins are invisible and the transceiver are almost invisible as joins and large dimension plates are used. The roof assembly must be taken special care to ensure cross-linked of aluminium structure. When practicable areas are required, they should be taken in consideration at the moment of the installation.
Technical Details:
| Material | 100% polyster fiber without chemical binders or retardants. |
| General Use | Interior decoration,Sound absorbing |
| Features | Light weight,Easy installation,Non-toxic,non-allergenic and non-irritant,Tightness and dimensional stability |
| Thickness | 12 / 15 / 18 mm |
| Specification | 2440*133,2400*197 mm |
| Density | 1300g/sqm,1600g/sqm,1900g/sqm,2000g/sqm |
| Installation | Pasting directly with spray,hot melt adhesive,glass glue,etc |
| Application | Meeting hall,theatre,music hall,gym,manufacturing shop,office,pub,hotel,library,reading room,classroom,kindergarten,piano room,etc |
Application:
Groove Wooden Acoustic Panels are suitable for almost every application including use in meeting room, schools, studios, theaters, offices and commercial buildings.
