Folding Partition Walls , Office Aluminum Sliding Doors , Aluminium Ceiling Track

Name: Folding Partition Walls Office Aluminum Sliding Doors Aluminium Ceiling Track
Brand: BUNGE
Price: 1 USD

Quality Folding Partition Walls , Office Aluminum Sliding Doors , Aluminium Ceiling Track for sale

Brand Name : BUNGE

Model Number : Type100

Place of Origin : China

MOQ : 10 Square Meters

Price : US $ 100 - 300 / Square Meter

Payment Terms : T/T

Supply Ability : 5,000 Square Meters per Month

Delivery Time : 10 working days after received your payment

Packaging Details : Carton package , MDF batten on four section sides , foam board on both front face

Material : Fabric

Open Style : Movable And Operable Partition System

Thickness : 100mm

Height : 2000 - 13000mm

Acoustic Rating dB STC : 45 / 55

Application : hotel , hall .meeting room and so on

Contact Now

Folding Partition Walls , Office Aluminum Sliding Doors , Aluminium Ceiling Track

Specifications

Technical Parameter for Partition Panel	Panel Width	500 - 1230mm
	Panel height	2000 - 13000mm
	Sound proof	42 -55 db
	Operation	Manual
	Frame	Aluminum
	Vertical profile	Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
	Finish options	Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
	Base options	Plywood, Gypsum, steel, MDF
	Max width	Unlimited
	Panel weight	30 – 48 kg / sq
Pass door selection	door	Single or double door
Seals	Top	Manual
Seals	bottom	Manual

Folding Partition Walls , Office Aluminum Sliding Doors , Aluminium Ceiling Track

Panel Surface Finish :

The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others . The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc .)

Retractable mechanism :

The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode . Single crank type mechanisms shall activate floor and head seals.

Folding Partition Walls , Office Aluminum Sliding Doors , Aluminium Ceiling Track
Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

Track :

The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .

Trolley :

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .

Applications :

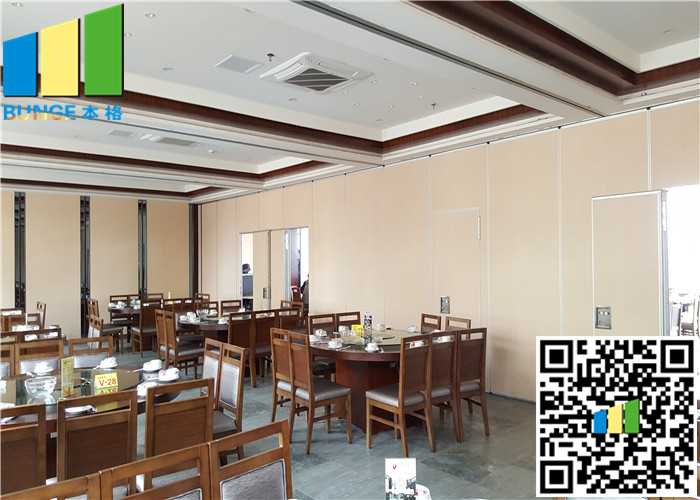

Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .

Stacking :

The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.

Folding Partition Walls , Office Aluminum Sliding Doors , Aluminium Ceiling Track

Product Tags:

soundproof folding partition

folding room partitions
